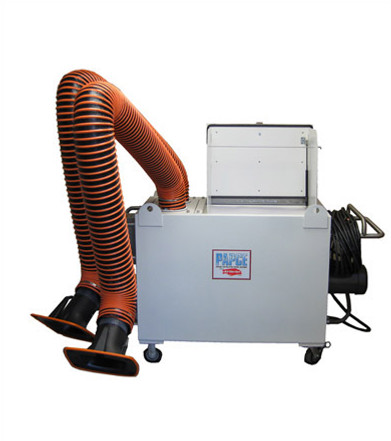

PAPCE 500 XP
Internationally employed POLLUTION CONTROL EQUIPMENT. Captures approximately 2,000 CFM a minute. MOBILE POLLUTION CONTROL EQUIPMENT. Approved by most all environmental agencies. Contains attachments for easy access to most any applications. Approvals ascertaining usefulness.
SKU: NSN 4460-01-513-9697 - 2D10 NSN 4460-01-513-9721 - 2D14 NSN 4460-01-513-9723 - 4D10 NSN 4460-01-513-9724 - 4D14
AirVerter’s 500 series PAPCEs are heavy-duty HEPA air filtration units with unmatched versatility. Fugitive mist, paint overspray, welding fumes, grinding or sanding dust or other liquid or solid errant particulate matter can be captured. The contaminated air is first fed into a 1-in. pre-filter where large particles are captured, then into a 9-in. pocket filter where smaller particles are contained and then into the main 12-in. HEPA filter where the smallest particulate is captured down to a size of 0.3 micron. The final carbon filter captures odors.
The breakthrough PAPCE design allows modules ranging from a full tabletop downdraft containment system to 4 extraction arms to be inserted by the customer into the transformable top. PAPCE’s modular system provides for the widest variety of applications available in any air filtration unit today.
Heavy 13-gauge steel construction with anti-corrosive powder-coat finish
Recessed doors with stainless latches, stainless steel push handles, fasteners and power cable holder
Modular cage containing blower, cone and motor for alignment accuracy and easy service
Modular top for multiple applications (Two or Four Ducts, Remote Intake, Full Tabletop)
Large 27.75 in. adjustable filter enclosure to accommodate various filter arrangements
0.3 micron HEPA filter, carbon filter, pocket filter and large particulate filter, standard
Dwyer Magnehelic Pressure Differential Gauge
Integral 100 ft. 10 AWG power cord with heavy-duty strain relief. Cord Cap (plug) NOT INCLUDED
Heavy-duty rubber swivel locking casters with foot brake
Forklift capable rugged base
Down Draft Table
Plug to allow spray gun attachment, up to 25 Feet
Tenting capabilities, large confined areas
Will accommodate up to evacuation ducts
Duct standard height 10 feet with special ducts up to 14 feet
6,143,048 | 6,264,711 B1 | 6,395,047 B1 | 6,607,573 B1 | 6,616,720 B1
